XT550 Ex Shaft Alignment Tool

Do you need an intrinsically safe laser shaft alignment tool for hazardous environments that is simple and can be used by all your staff? Is your objective to achieve a precision shaft alignment that is within tolerance and documented? Do you need a system that is packed with functions but is still at an affordable price?

If yes, then the XT550 Ex Shaft Alignment Tool is for you! It’s our most popular laser shaft alignment tools for petrochemical and oil & gas industries and we guarantee you wont regret buying this system. Read on or call us and we can tell you about it.





Intrinsically Safe, Rugged Design

The Easy-Laser XT550 Shaft Alignment Tool laser measuring units and the ecom Tab-Ex® tablet are approved in accordance with the latest ATEX directives – this means the laser shaft alignment tool is intrinsically safe for explosive or hazardous environments. These parts are also built with a rugged design and have been tested and approved to an IP rating of both IP66 and IP67 – water, dust and shock-proof. With that and the measuring units’ superior performance in sunlight, this guarantees you will be able to take on and finish even the toughest jobs.





User-Friendly

Finish each laser shaft alignment with an automatic report on your “as found” and “as left” measurements results. You can type in any comments into the Notes section and easily create a PDF report containing all measurement data. Or why not share it (e-mail) right from the display with the included Wi-Fi? The ecom Tab-Ex® tablet also comes with a camera so you can photograph the machines identification tag and a picture of the machine for your report.





More Measurement Capabilities

The XT550 Ex laser alignment measuring units utilize dot laser technology. This makes it possible to measure larger machine spans than the line laser tools. Perform precision shaft to shaft alignments (horizontal and vertical machines) up to 20 meters (66 feet)! New measurement methods like Multipoint and Continuous Sweep gives you options for any alignment application, not to mention it provides higher accuracy & repeatability when backlash is present from gearboxes or couplings. The XT550 Ex laser shaft alignment tool also allows you to check more things when installing a machine, e.g. twist of foundation, bearing clearance and machine stress.





Comprehensive Documentation

This huge touch screen display is glove friendly and works just like your phone or tablet. Its tap and go right at your finger tips. The intuitive user interface guides you through the measurement process. Use the ATEX-approved and intrinsically-safe ecom Tab-Ex® tablet, or install the free Easy-Laser Generation XT laser alignment app on your iOS or Android device. You are not locked-in to a specific way of working. With the app there are no license hassles either, only free updates!

XT550 Ex Shaft Alignment Tool

Display Data on Multiple Platforms

Based on the Samsung GALAXY Tab Active, ecom´s hazardous area tablet is certified for use in Zone 1/21 & DIV 1 hazardous areas. The tablet is wireless, has an 8” colour touchscreen, comes with a built-in camera, connects to WiFi and has 11 hour continuous battery life! Or use your own tablet or phone with the free Easy-Laser XT app. Try it today, the choice is yours!

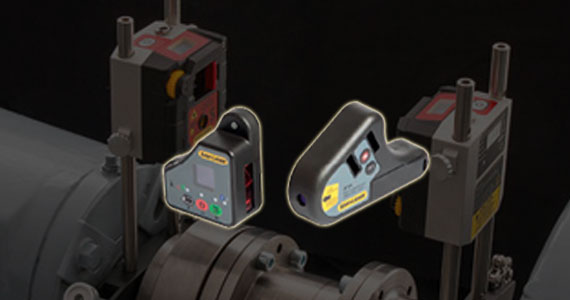

Measuring Units with Dot-Laser Technology

The ATEX-approved wireless measuring units use a dot-laser technology which makes it possible to measure longer machine spans than line laser systems and the ability to measure base twist. They come pre-mounted with chains and rods, can operate in -10 to 50 degrees C temperature with superior performance in sunlight and with the new and improved batteries can operate for up to 20 hours straight!

Powerful Options

Expand your XT550 Ex laser shaft alignment tool with powerful options making your system an all-in-one measurement tool! Add the XT190 Pulley Alignment Tool for pulley & belt alignment. Or try the XT280 Vibration Tool to check the vibration levels.

Measurement Programs & Features

The XT550 Ex shaft alignment tool comes stocked with many different measurement programs, measurement methods and functions to give you the best possible laser shaft alignment result. View the videos below for more details.

Many Bracketing Fixtures for all applications

Choose from many different bracketing fixtures for all different types of alignment and measurement applications

Measurement Programs

Easy-Laser XT550

For a detailed list of Shaft Alignment Programs click here

Measurement Functions

Easy-Laser XT550

For a detailed list of Shaft Alignment Functions  click here

Measurement Methods

Easy-Laser XT550

For a detailed list of Shaft Measurement Methods  click here
