E970 Roll Alignment Tool

Roll Parallel Alignment

The  E970 roll alignment tool by Easy-Laser® uses the traditional method where a laser beam is pointed alongside the machine, and then deflected 90 degrees towards the roll alignment measurement object by a penta prism. The prism is moved along the beam, which is deflected to each roll that is to be measured and maybe aligned. Both ends of the roll are measured, and you get an angular value which is compared to the reference line (base line) or a reference roll. Besides paper machines, printing machines and rolling mills you can also measure and align rails, overhead tracks, metal sheet cutters and many other types of machines.



The E970 roll alignment tool is especially suitable when many objects are to be measured and aligned, and when measuring over a long distance. The maximum distance with a standard roll alignment system is 80 metres, the number of measurement objects can be several hundred, but is more likely limited by other practical factors than the system software! The roll alignment can be performed in live mode with instant feedback. You can add, remove and remeasure objects any time during the roll alignment measurement. The result is displayed both graphically and digitally in a table, and a PDF report can be produced directly on-site. Then transfer the results to your PC and the data base software EasyLink™ (included).



Check out our roll alignment demo video below and let us know your feedback in the YouTube comment section!

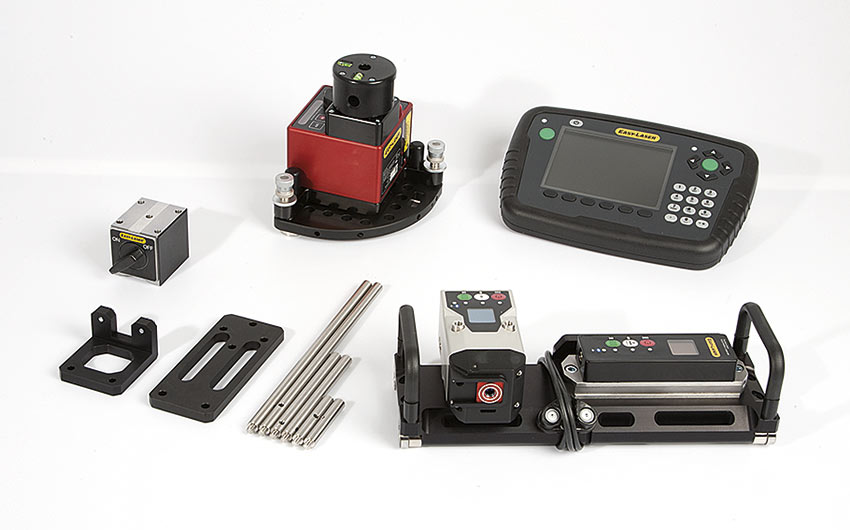

Roll Alignment Tool E970 system image
